Details:

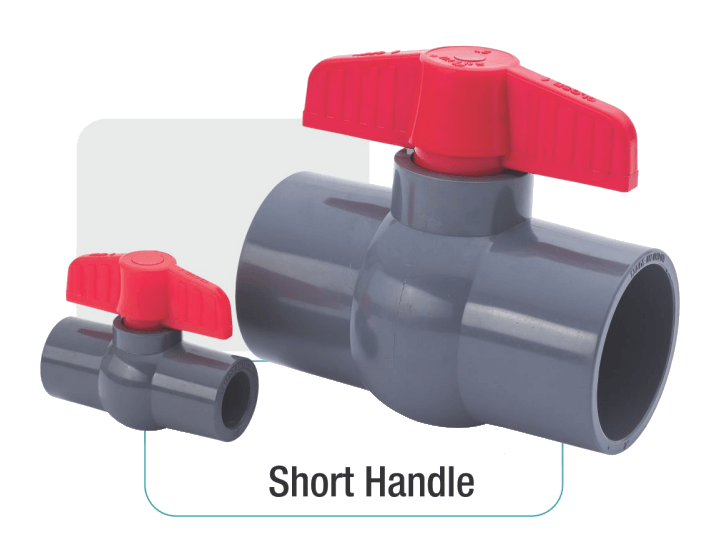

The RPVC Compact Ball Valves Fitting is a specialised component designed to control and regulate the flow of water in agricultural applications. With its compact size and durable construction, this fitting allows farmers and irrigation systems to easily adjust water flow rates and accurately distribute water to crops or other farming needs.
1. Material Composition:
Made from Rigid Polyvinyl Chloride (RPVC), ensuring high durability and strength, ideal for industrial and residential applications.
2. Corrosion Resistance:
The RPVC material offers excellent resistance to chemicals, salts, and harsh environments, making it ideal for long-term usage in chemical plants, irrigation systems, and more.
3. Lightweight & Easy Installation:
RPVC ball valves are lightweight, making them easier to handle and install compared to metal valves, reducing labor costs and effort.
4. Pressure & Temperature Tolerance:
Designed to handle moderate pressure and temperature, commonly used in low to medium pressure applications.
5. Smooth Operation:
The valve features a quarter-turn handle for quick and smooth operation, allowing for effective flow control with minimal effort.
6. Leak-Proof Design:
The utility ball valve ensures a leak-proof seal, thanks to its precisely engineered ball and seat design, ensuring no water wastage.
7. Low Maintenance:
RPVC ball valves require minimal maintenance and offer a long service life, even in demanding applications.
Additional Features:
- UV Resistant : Suitable for outdoor installations due to its UV resistance.
- Cost-Effective : RPVC material provides a more economical solution compared to metal alternatives.
- Eco-Friendly : Manufactured from non-toxic materials, making it environmentally friendly.
Application Areas:
- Water supply systems
- Agriculture & irrigation systems
- Industrial fluid handling
- Plumbing systems
- Chemical processing
Note : Not suitable for compressed air and gases.
RPVC BALL VALVE TECHNICAL DATA
| SIZE |
ID (mm) |
ID1 (mm) |
OD (mm) |
OD1 (mm) |
L (mm) |
L1 (mm) |
L2 (mm) |
H (mm) |
H1 (mm) |
| 1/2" |
20.00 |
13.50 |
38.50 |
31.00 |
75.50 |
78.70 |
89.00 |
65.00 |
18.00 |
| 3/4" |
25.00 |
18.70 |
45.50 |
36.30 |
85.00 |
89.50 |
100.50 |
75.50 |
22.00 |
| 1" |
32.00 |
24.00 |
55.00 |
43.50 |
100.00 |
102.00 |
115.50 |
90.50 |
26.50 |
| 1-1/4" |
40.00 |
28.00 |
64.00 |
52.60 |
115.70 |
121.50 |
137.70 |
98.50 |
25.00 |
| 1-1/2" |
50.00 |
34.50 |
73.50 |
60.70 |
128.70 |
134.50 |
155.00 |
113.50 |
29.50 |
| 2" |
63.00 |
45.80 |
89.30 |
74.70 |
146.00 |
148.00 |
173.00 |
173.80 |
38.00 |
