Details :

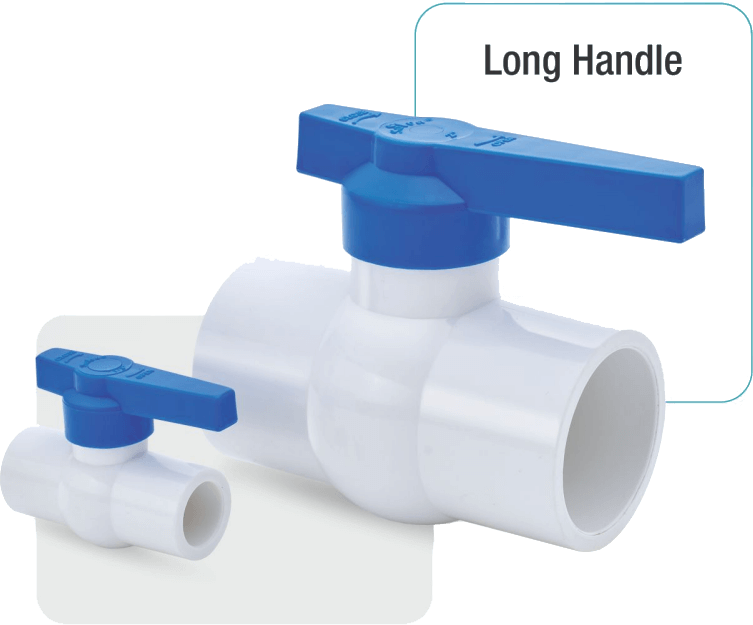

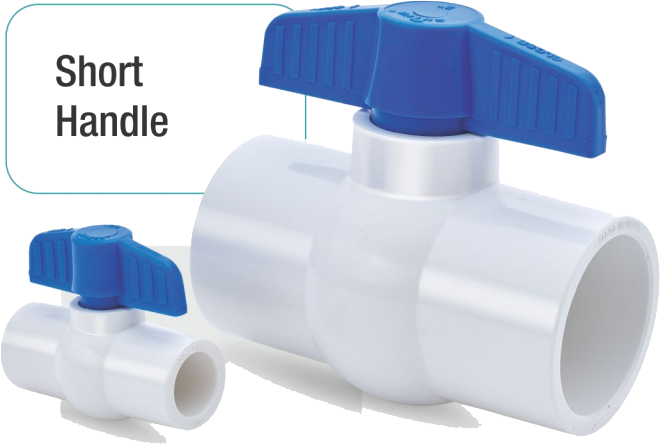

uPVC Compact Ball valve for ASTM piples affects a convenient solution for quickly
disconnecting the water supply.the valve is designed to be easy to operate,allowing
users to shut off or control flow with a simple turn of a handle.Its compact design
and compatibility with ASTM pipes make it an ideal choice for efficient and hassle
free plumbing instaling,as well as portable water distribution such as cold water
plubing applications in buildings ,water distribution main lines,Industrial process lines,
corosive build transporation,swimming pools,salt water line etc.
1. Material Composition :
Made from Unplasticized Polyvinyl Chloride (uPVC), providing a strong, rigid structure ideal for various plumbing and industrial applications.
2. Corrosion and Chemical Resistance :
uPVC material offers excellent resistance to chemicals, acids, and salts, making it ideal for water supply, irrigation, and chemical handling systems.
3. Lightweight & Easy to Install :
uPVC ball valves are lightweight, making them easy to handle and install, reducing labor time and costs.
4. Pressure & Temperature Tolerance :
Suitable for low to medium pressure systems. Commonly used in water systems due to its ability to handle cold water and moderate temperature ranges.
5. Leak-Proof & Smooth Operation :
The valve features a quarter-turn ball valve mechanism that ensures a leak-proof seal and smooth operation for flow control.
6. UV Resistant & Non-Toxic :
uPVC ball valves are UV-resistant, ensuring durability when exposed to sunlight, making them ideal for outdoor installations. The material is also non-toxic, suitable for potable water systems.
7. Low Maintenance :
With a simple design and durable materials, these valves require minimal maintenance and have a long lifespan.
8. Wide Application :
- Water supply and distribution
- Irrigation systems
- Plumbing and drainage
- Chemical and industrial fluid systems
- Wastewater management
Additional Features :
- Cost-Effective : A more affordable solution compared to metal valves, providing high durability at a lower cost.
- Smooth Flow Control : Designed to provide optimal flow control with minimal friction loss, enhancing the efficiency of fluid systems.
- Eco-Friendly : Manufactured from recyclable materials, contributing to environmental sustainability.
uPVC BALL VALVE TECHNICAL DATA
|
SIZE
|
ID (mm)
|
ID1 (mm)
|
OD (mm)
|
OD1 (mm)
|
L (mm)
|
L1 (mm)
|
H (mm)
|
H1 (mm)
|
|
1/2"
|
21.23
|
13.50
|
38.50
|
31.00
|
75.50
|
69.30
|
65.00
|
8.00
|
|
3/4"
|
26.57
|
18.70
|
45.50
|
36.30
|
85.00
|
77.50
|
76.50
|
10.00
|
|
1"
|
33.27
|
24.00
|
55.00
|
43.50
|
100.00
|
97.80
|
91.50
|
14.00
|
|
1-1/4"
|
42.04
|
28.00
|
64.00
|
52.60
|
115.70
|
105.50
|
101.50
|
14.00
|
|
1-1/2"
|
48.11
|
34.50
|
73.50
|
60.70
|
128.70
|
122.00
|
114.50
|
16.00
|
|
2"
|
60.17
|
45.80
|
89.30
|
74.70
|
146.00
|
132.80
|
138.00
|
21.30
|
